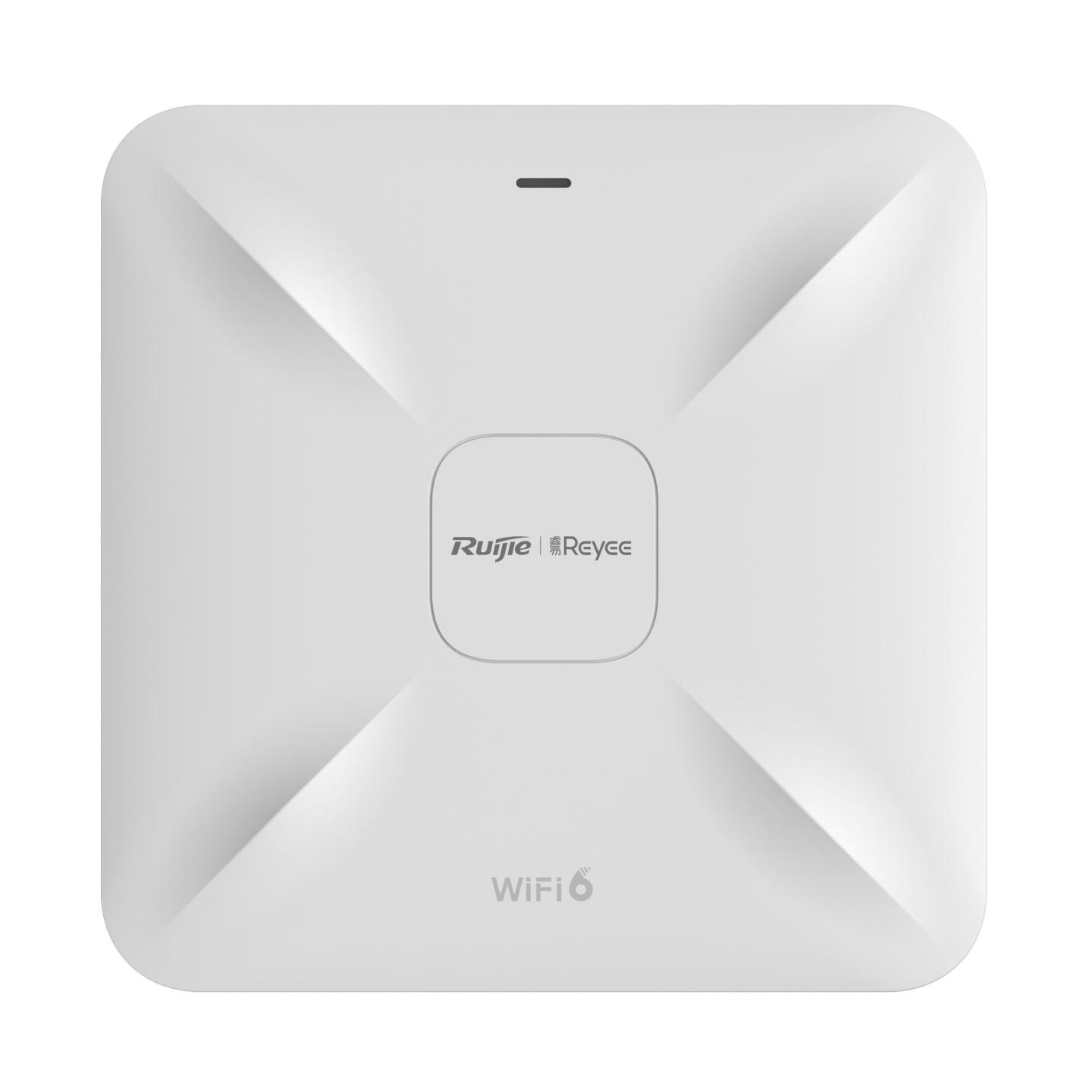

| Model | RG-RAP2260(E) |
| Hardware Specifications |
| Radio | Dual-stream dual-band |
| Protocol | Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n |
| Operating Bands | 802.11b/g/n ：2.4G ~ 2.4835GHz |
| 802.11a/n/ac/ax ： 5G：5.150～5.350GHz，5.725～5.850GHz (country specific) |
| Antenna | Internal antennas(2.4G: 3dBi，5G: 3dBi) |
| Spatial Streams | 2.4G 4x4MIMO 5G 4x4MIMO |
| Max Throughput | Up to 800Mbps at 2.4G |
| Up to 2402Mbps at 5G |
| 3.202Gbp per AP |
| Modulation | OFDM： |
| BPSK@6/9Mbps，QPSK@12/18Mbps，16QAM@24Mbps，64QAM@48/54Mbps |
| DSSS： |
| DBPSK@1Mbps，DQPSK@2Mbps， |
| and CCK@5.5/11Mbps |
| MIMO-OFDM： |
| BPSK，QPSK，16QAM ，64QAM，256QAM and1024QAM |
| OFDMA |
| Receive Sensitivity | 11b： |
| -96dBm(1Mbps)， |
| -93dBm(5Mbps)， |
| -89dBm(11Mbps) |
| 11a/g： |
| -91dBm(6Mbps)， |
| -85dBm(24Mbps)， |
| -80dBm(36Mbps)， |
| -74dBm(54Mbps) |
| 11n： |
| -90dBm(MCS0)， |
| -70dBm(MCS7)， |
| -89dBm(MCS8)， |
| -68dBm(MCS15) |
| 11ac： |
| 20MHz：-88dBm(MCS0), -63dBm(MCS9) |
| 40MHz：-85dBm(MCS0), -60dBm(MCS9) |
| 80MHz：-85dBm(MCS0), -60dBm(MCS9) |
| Wi-Fi 6： |
| 80MHz：-82dBm(MCS0), -57dBm(MCS9),-52dBm(MCS11) |
| Maximum output power of the transmitter | 2.4GHz(2.4~2.4835GHz)：23dBm |
| (single stream) | 5GHz(5.150~5.250GHz,5.725~5.850GHz)：23dBm |
| | (country-specific，comply with local laws) |
| Adjustable Power | 1dBm |
| Dimensions | 220mm×220mm×35mm (excluding mounting kits) |
| Weight | 1.05kg (excluding mounting kits) |
| Service Ports | 1 10/100/1000M/2.5G Base-T Ethernet ports supports PoE; |
| 1 10/100/1000M Base-T ,Ethernet ports |
| Management Port | NA |
| LED Indicator | Single indicator (green light) |
| Power Supply | Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory), 802.3at PoE (Warning：802.3af or non-standard POE adapter may cause unknown issues. Please use Ruijie POE+ switch or 802.3at POE adapter as power supplier) |
| Power Consumption | ≤ 25.4W |
| Environment | Operating temperature: 0°C～40°C |
| Storage temperature: -40°C～70°C |
| Operating humidity: 5％～95％ |
| (non-condensing) |
| Storage humidity: 5％～95％ |
| (non-condensing) |
| Installation | Ceiling/wall-mountable |
| Safety Standard | GB4943, IEC 62368-1 |
| EMC Standard | GB9254，EN301 489，EN50155，EN50121，EN55032，EN61000，EN55035 |
| Vibration Standard | IEC61373 |
| Radio Standard | EN300 328, EN301 893 |
| MTBF | >400000H |
| Software Features |
| Operating Mode | AP mode and routing mode |
| WLAN | Maximum number of clients: 512 |
| Recommended number of clients: 120 |
| Up to 8 SSIDs |
| Support SSID hiding |
| Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID |
| SSID-based and radio-based STA limit |
| Support Layer 2 user isolation |
| Roaming | Support Layer 2 and Layer 3 roaming |
| Security | Support PSK authentication |
| Support static blacklist and whitelist |
| Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption |
| Support Black List / White List： |
| Maximum 256 rules per SSID |
| Maximum 1024 rules per AP |
| Routing | Support static IP address, DHCP, PPPoE Dial Up |
| Management and maintenance | Support unified networking of all network equipment |
| Support local or remote management with Ruijie Cloud app |
| Support local management with web |
| Support remote management with Ruijie Cloud platform |
| Platform management features | Automatic RF adjustment via the platform |
| Unified configuration via the platform |
| Unified monitoring via the platform |
