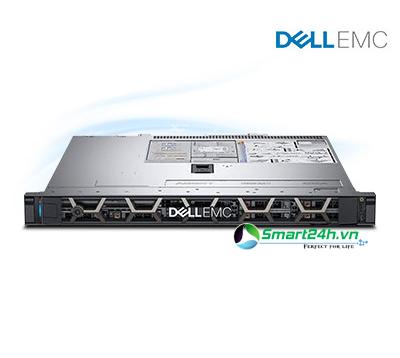

Dell PowerEdge R340

  • SM00616
  • Dell

Dell PowerEdge R340 3.5" E-2134

Intel® Xeon® E-2134 3.5GHz, 8M cache, 4C/8T, turbo (71W)

8GB 2666MT/s DDR4 ECC UDIMM

Dell 1TB 7.2K RPM SATA 6Gbps 512n 3.5in Hot-plug Hard Drive

PERC H330 Adapter RAID Controller, No Cache (RAID 0,1,5,10,50)

On-Board Broadcom 5720 Dual Port 1Gb LOM

iDRAC9 Basic

4 x 3.5 hot-plug SAS, SATA, or SSD

DVD +/-RW, SATA, Internal Option

Dual, Hot-plug Power Supply (1+0), 350W

NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord

PowerEdge 1U Standard Bezel

Rack (1U), ReadyRails™ Sliding Rails

Warranty : 3 Year ProSupport and NBD On-site Service










Processor

1 processor from the following:
Intel® Xeon® E-2100 product family,
Intel Pentium®,
Intel Core i3®,
Intel Celeron®

Bezel

Optional security bezel

Chassis

Form Factor: Rack (1U)

Dimensions:
Chassis width: 434.00mm (17.08")
Chassis depth: 595.63mm (23.45") (3.5" HHD config)
Chassis depth: 544.836mm (21.45") (2.5" HHD config)

Note: These dimensions do not include: bezel, redundant PSU

Chassis weight: 13.6 kg (29.98 lb)

Memory*

DIMM Speed: Up to 2666MT/s DDR4 DIMMs
Memory Type: UDIMMs
Memory Module Slots: 4
Maximum RAM: Up to 64GB

Hard Drive

Up to 8 x 2.5 hot-plug SAS, SATA, or SSD
Up to 4 x 3.5 hot-plug SAS, SATA, or SSD

Management

Embedded / At-the-Server
iDRAC9 with Lifecycle Controller
iDRAC Direct
iDRAC RESTful API with Redfish

Consoles
OpenManage Enterprise
OpenManage Essentials
OpenManage Power Center

Mobility
OpenManage Mobile

Tools
iDRAC Service Module
OpenManage Server Administrator
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
Dell EMC RACADM CLI
IPMI Tool

OpenManage Integrations
Microsoft® System Center
VMware® vCenter™
BMC Truesight (available from BMC)
Red Hat Ansible

OpenManage Connections
Nagios Core & Nagios XI
Micro Focus Operations Manager i (OMi)
IBM Tivoli Netcool/OMNIbus

Network Controller

2 x 1GbE LOM Network Interface Controller (NIC) ports

Power Supplies

Single or dual 350W or 550W hot-plug redundant power supplies

Storage Controllers

Internal controllers: PERC H730P, H330, HBA330 (non-RAID)
Software RAID: PERC S140
External HBAs: 12Gbps SAS HBA (non-RAID)
Boot Optimized Storage Subsystem: 2x M.2 240GB (RAID 1 or No RAID), 1x M.2 240GB (No RAID only)

I/O Expansion Slots

2 x PCIe Gen 3.0 slots

  • One x8 slot low-profile, half length with x4 slot width
  • One x16 slot low-profile/full-height, half length with x8 bandwith



Ports

Front:
• One USB 2.0
• Micro USB 2.0 compliant for iDRAC Direct
Rear:
• Two USB 3.0
• VGA
• Serial connector
Internal port:
• One USB 3.0

Supported Operating Systems

Microsoft Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi
Citrix® XenServer®
Ubuntu Server
Certify XenServer

Rack Support

ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).

Recommended Support

Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region
