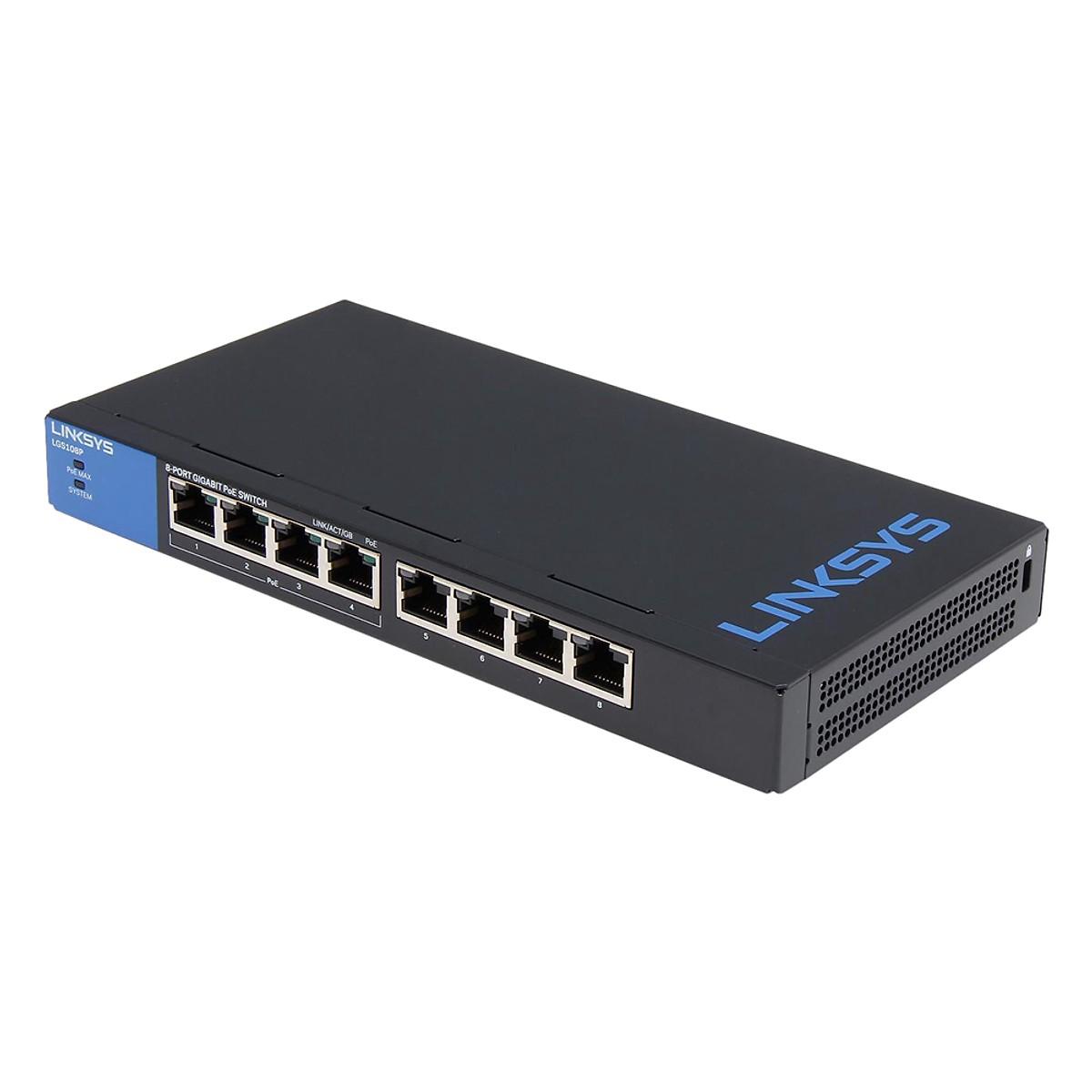

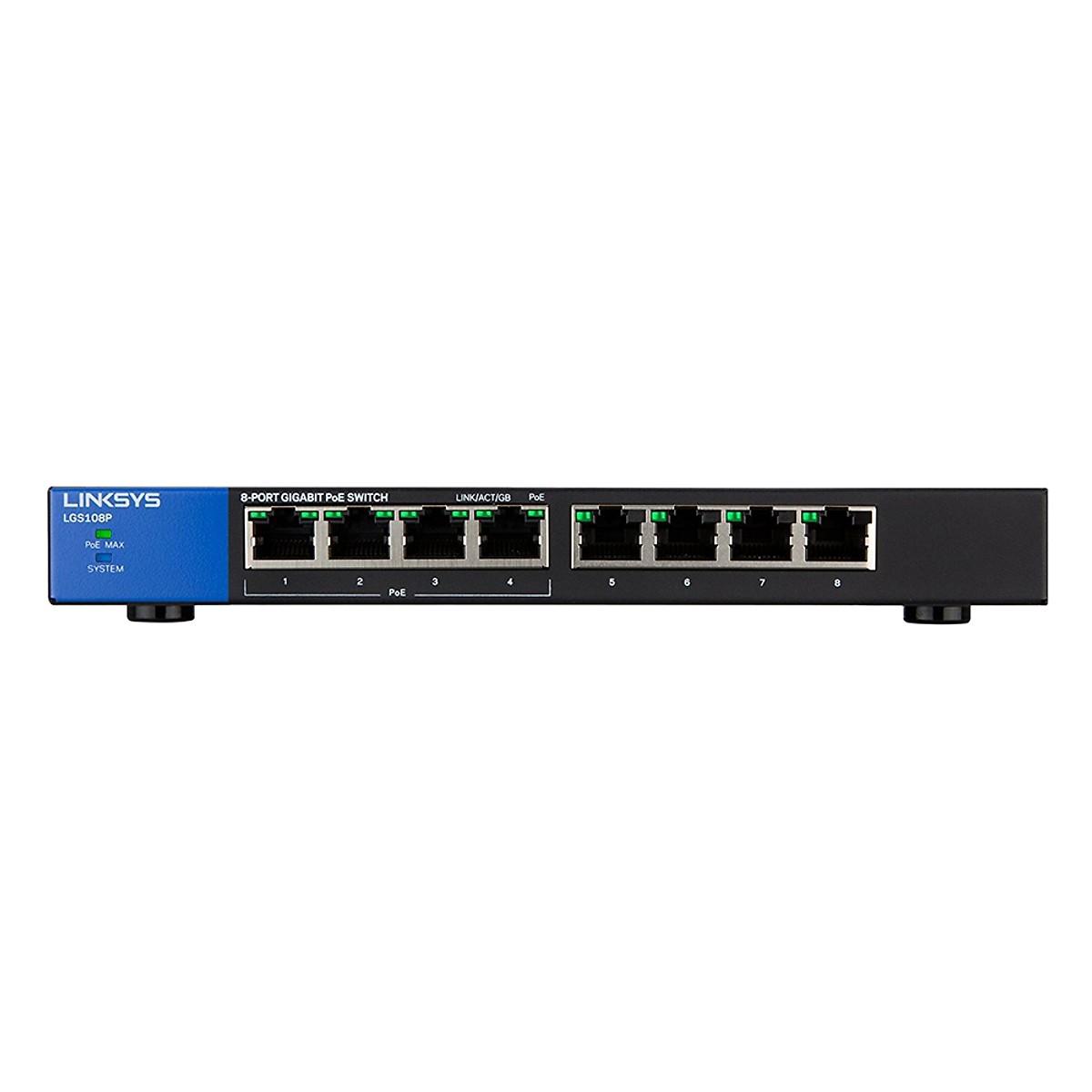

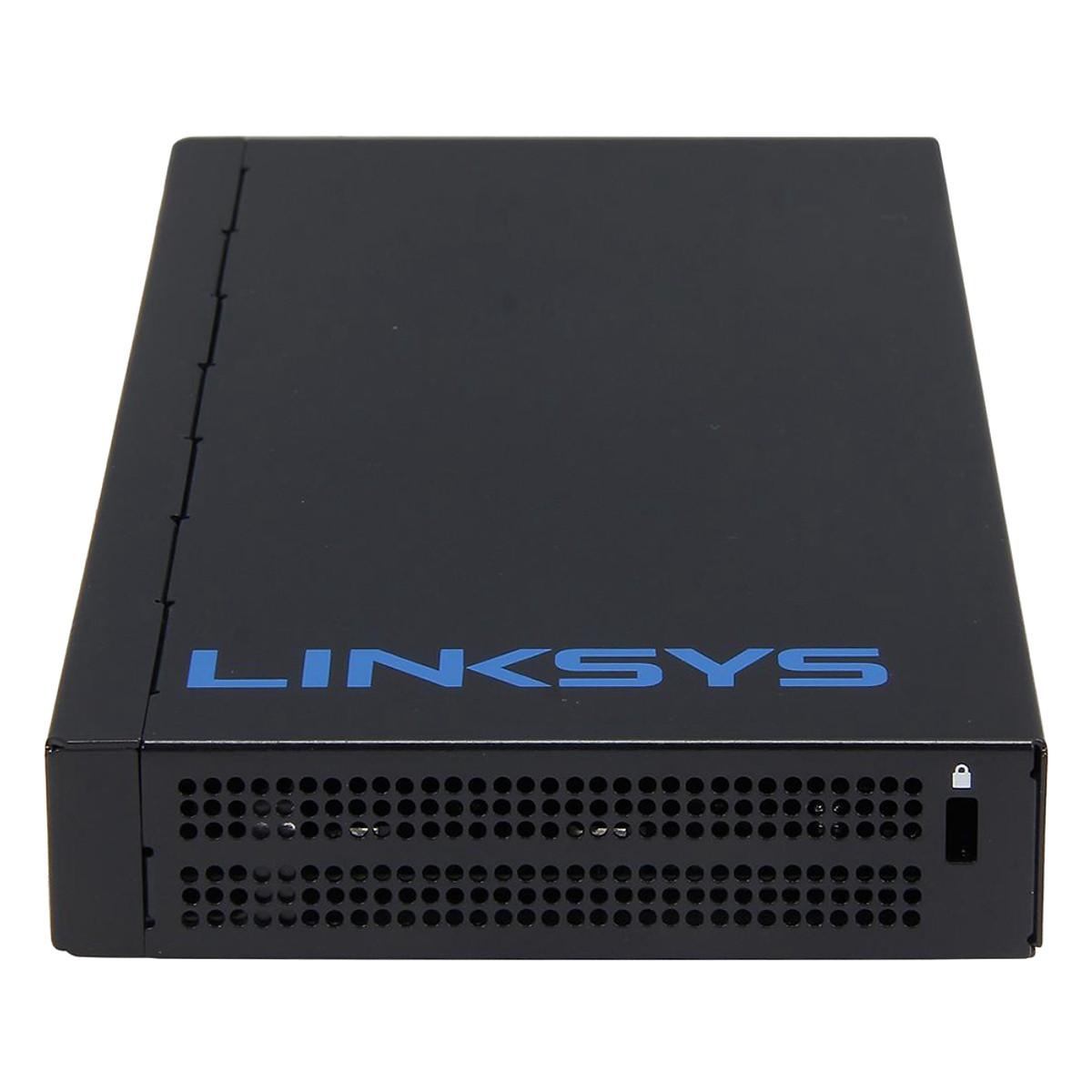

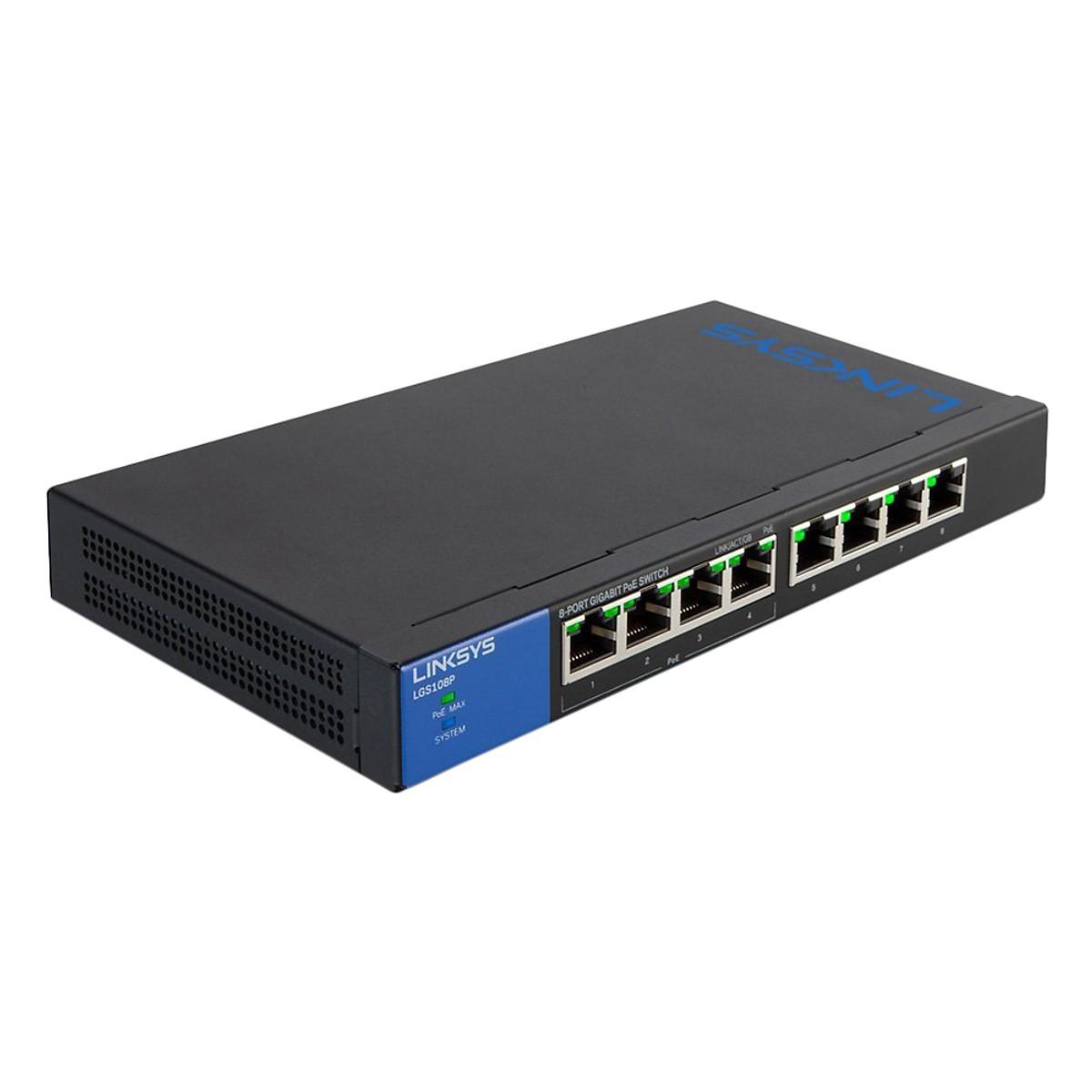

LINKSYS LGS108P  8-Port Business Desktop Gigabit PoE+ Switch

-      Upgrade the data paths of your local wired network to information superhighways with 8-port desktop Gigabit PoE switches.

-      8-port GB switch with 4 ports PoE+ (Port 1-4), PoE power budget of 50W.

-      Bandwidth: 16 Gbps (non-blocking).

-      Performance: Full line rate and forwarding rate of 64B frame at: 1.488Mpps for 1000M port; 0.1488Mpps for 100M port; 0.01488Mpps for 10M port.

-      Wired connection speed up to 1,000 Mbps

-      8 Gigabit Ethernet autosensing ports

-      Power over Ethernet (PoE) support

-      Easy plug & play connection

-      QoS

-      Meets EEE (Energy Efficient Ethernet) 802.3az standard

GIGABIT PERFORMANCE

Minimize transfer times and stream high-bandwidth files to connected devices without interference.

PLUG-AND-PLAY CONVENIENCE

Instantly extend your office network with a quick and easy installation.

QUALITY OF SERVICE (QOS) TRAFFIC PRIORITIZATION

Prioritize traffic to particular devices or activities & maintain mission-critical data throughput regardless of network congestion.

AUTO-SENSING PORTS

Automatically optimize speed for each connected device.

INTEGRATED POWER OVER ETHERNET PLUS (POE+)

Makes installation simple and inexpensive by eliminating the need for additional power cables and nearby power outlets. Backwards compatible with 802.3af (PoE) standard.

Technical specifications

-      Network Standards:

o   IEEE 802.3

o   IEEE 802.3u

o   IEEE 802.3x

o   IEEE 802.3ab

o   IEEE 802.3az

o   IEEE 802.3af

o   IEEE 802.3at (PoE+)

-      Ports: 8-port switch with 4 PoE+ ports (first 1–4 ports) and dedicated PoE power budget of 50 W

-      LEDs: Link, speed, activity, and PoE indicators

-      Performance:

o   Full line rate and forwarding rate of 64B frame at:

o   1.488 Mpps for 1000M port

o   0.1488 Mpps for 100M port

o   0.01488 Mpps for 10M port

-      MAC Address Table Size: 8,000 entries

-      Bandwidth: 16 Gbps (non-blocking)

-      Fans: None

-      Minimum System Requirements: Connected devices need Ethernet connectivity and Ethernet cables

-      Dimensions (LxWxH): 210 x 104 x 25 mm (8.3 x 4.1 x 1.0 in.)

-      Weight: 0.556 kg (1.23 lbs)

-      Power: 54 VDC, 1.2 A

-      Power Consumption: 3.83 W / 7.0 W

-      Power Saving: Cable connected detection, sleep mode

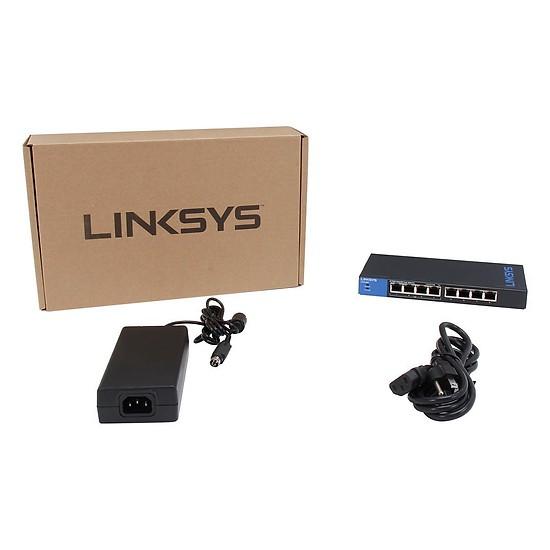

-      Power Supply: External

-      Operating Temperature: 0–50°C (32–122°F)

-      Storage Temperature: -40–70°C (-40–158°F)

-      Operating Humidity: 10–90% (non-condensing)

-      Storage Humidity: 10–90% (non-condensing)

-      Mounting: Wall

-      Quality Of Service: 802.1p and DSCP

-      Regulatory Compliance: FCC Class A, CE
