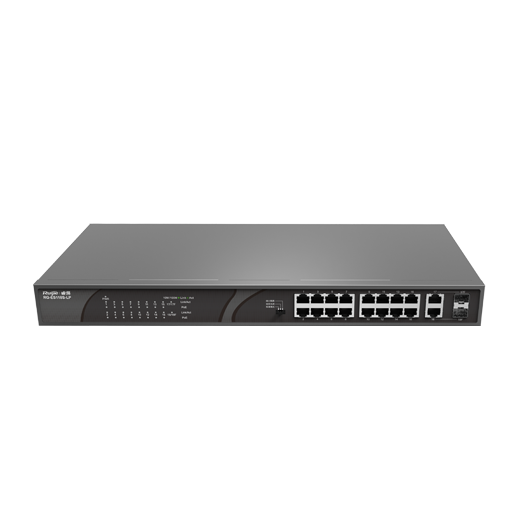

Bộ Chia Mạng Ruijie RG-ES118S-LP 16-Port 100Mbps + 2 Gigabit RJ45/SFP Combo Ports
Thông số sản phẩm
- 16-Port 100Mbps + 2 Gigabit RJ45/SFP Combo Ports
- Switching capacity: 7.2Gbps
- Package forwarding rate: 5.36Mpps
- Power consumption: 148W
- PoE power budget: 120W
THÔNG SỐ
| Model | RG-ES118S-LP |
| Hardware specifications | |
| Ports | 16*10/100 Mbps PoE/PoE+ Ports |
| 2*10/100/1000 Mbps combo ports | |
| Operating mode | Half-duplex, full-duplex, auto-negotiation mode |
| Support auto MDI/MDIX | |
| Switching capacity | 7.2Gbps |
| Package forwarding rate | 5.36Mpps |
| Power supply | |
| Surge protection | Switch-mode power supply: |
| Common mode: ±6 kV | |
| Differential mode: ±6 kV | |
| Network ports: | |
| Non-PoE ports: ±4 kV | |
| PoE ports: ±6 kV | |
| Port Mode | “Flow Control On” |
| “Flow Control Off” | |
| “Port Isolation” | |
| from left to right | |
| Power consumption | 148W |
| PoE power budget | 120W |
| Fan | NA |
| Dimensions | 440 x 208 x 44 mm |
| (W x D x H) | |
| Operating temperature | 0℃ to 45℃ |
| Storage temperature | -40℃ to 70℃ |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 95% RH |
