Palo Alto Networks PA-5450

Mã sản phẩm: SM00930
Thương hiệu: Palo Alto

100/1000/10G Cu (4), 1G/10G SFP/ SFP+ (12)

40G/100G QSFP28 (2)

mindestens 1 NC und maximal 2 NCs pro System

2 NCs erfordern 2 oder mehr installierte DPCs

480 GB SSD, RAID1, Systemspeicher

4 TB SSD, Protokollspeicher (optional)

Giá bán : Liên hệ để có giá tốt

Thêm vào giỏ hàng

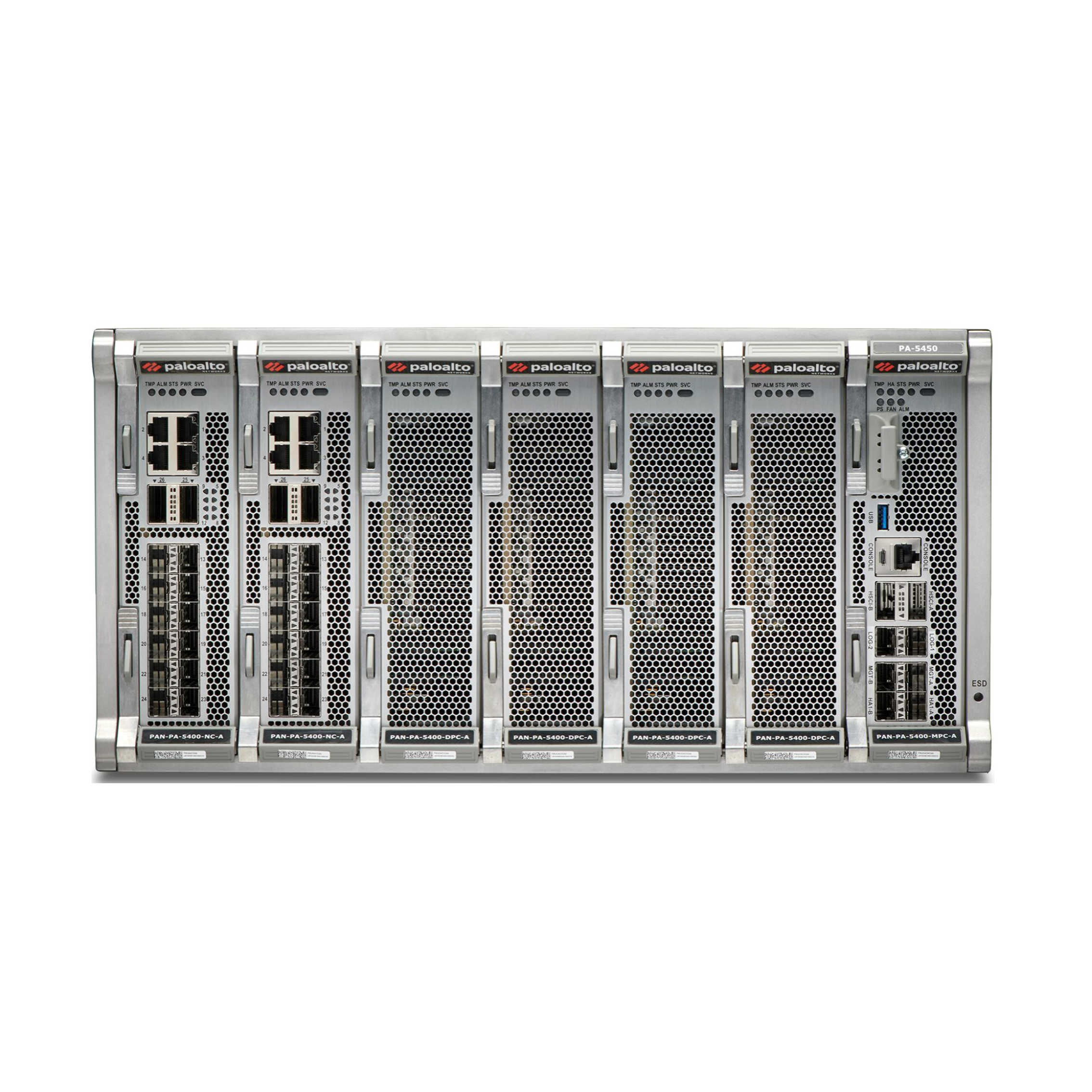

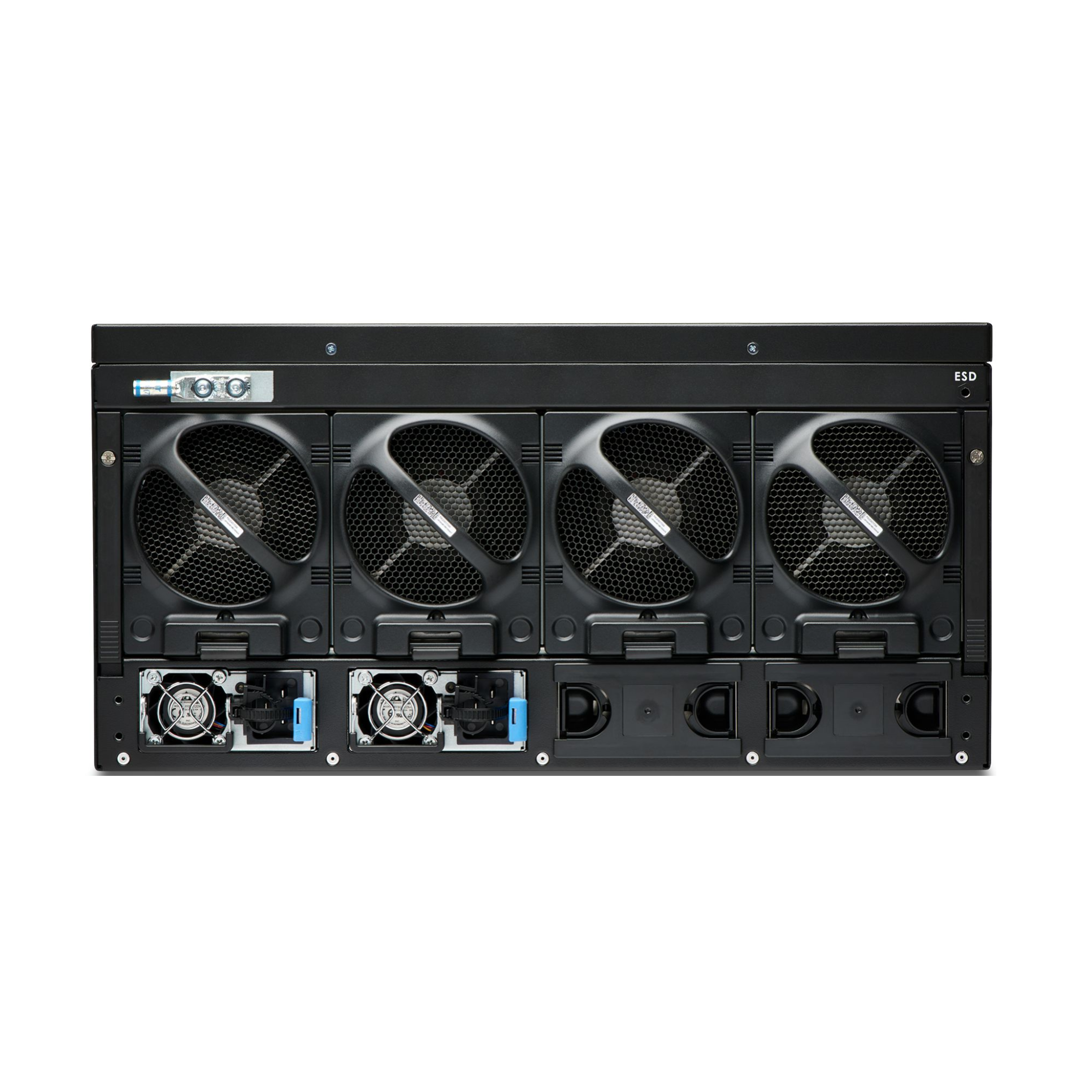

Palo Alto Networks PA-5450 Firewall System [PAN-PA-5450-AC-SYS]

Palo Alto Networks PA‑5450
I/O	100/1000/10G Cu (4), 1G/10G SFP/ SFP+ (12), 40G/100G QSFP28 (2); mindestens 1 NC und maximal 2 NCs pro System; 2 NCs erfordern 2 oder mehr installierte DPCs
Management‑I/O	10/100/1000 (2), 40G/100G QSFP28 HA (2), 10/100/1000 Out-of- Band-Management (2), RJ45-Konsolenanschluss (1), USB-Konsolenanschluss (1)
Speicherkapazität	480 GB SSD, RAID1, Systemspeicher 4 TB SSD, Protokollspeicher (optional)
Stromversorgung (durchschn./max. Stromverbrauch)	2/4
Max. BTU/h	8,828
Eingangsspannung (Eingangsfrequenz)	100–120 VAC & 200–240 VAC (50–60 Hz)
Max. Stromaufnahme	AC: 100–120 VAC, ~14 A max. per input 200–240 VAC, ~12.5 A max. per input
Abmessungen	5HE, 19" Standard-Rack 22,23 cm H x 76,84 cm T x 44,15 cm B
Sicherheit	cTUVus, CB
EMI	FCC Class A, CE Class A, VCCI Class A, KCC Class A, BSMI Class A
Zertifizierungen	Siehe paloaltonetworks.com/company/certifications.html
Umgebung	Betriebstemperatur: 0 bis 40 °C Temperatur bei Nichtbetrieb -20 bis 70 °C Passive Kühlung

PA‑5450
Firewall-Durchsatz (HTTP/Appmix)	200/200 Gbps
Threat Prevention-Durchsatz (HTTP/Appmix)	125/150 Gbps
IPsec-VPN-Durchsatz	95 Gbps
Max. Anzahl an Sitzungen	100M
Neue Sitzungen pro Sekunde	4M
Virtuelle Systeme (Basis/Max)	25/225

Netzwerkfunktionen der PA‑5450
Schnittstellenmodi	L2, L3, TAP, Virtual Wire (Transparent-Modus)
Routing	OSPFv2/v3 mit graceful restart, BGP mit graceful restart, RIP, statisches Routing Richtlinienbasierte Weiterleitung Punkt-zu-Punkt-Protokoll über Ethernet (PPPoE) und DHCP für dynamische Adressvergabe unterstützt Multicast: PIM-SM, PIM-SSM, IGMP v1, v2 und v3 Bidirektionale Weiterleitungserkennung (BFD)
SD‑WAN	Messung der Pfadqualität (Jitter, Paketverlust, Latenz) Auswahl des ersten Pfads (PBF) Dynamischer Pfadwechsel
IPv6	L2, L3, TAP, Virtual Wire (Transparent-Modus) Funktionen: App-ID, User-ID, Content-ID, WildFire und SSL-Entschlüsselung SLAAC
IPSec VPN	Schlüsselaustausch: manueller Schlüssel, IKEv1 und IKEv2 (Pre-Shared Key, zertifikatsbasierte Authentifizierung) Verschlüsselung: 3DES, AES (128-Bit, 192-Bit, 256-Bit) Authentifizierung: MD5, SHA-1, SHA-256, SHA-384, SHA-512 GlobalProtect large-scale VPN für vereinfachte Konfiguration und Verwaltung
VLANs	802.1Q-VLAN-Tags pro Gerät/pro Schnittstelle: 4,094/4,094 Aggregierte Schnittstellen (802.3ad), LACP

LIÊN HỆ NGAY NHÀ PHÂN PHỐI MIỀN BẮC CÔNG TY TNHH CÔNG NGHỆ SMART24H

ĐỂ ĐƯỢC TƯ VẤN VÀ BÁO GIÁ MIỄN PHÍ:

Email: sale.smart24h@gmail.com

TeL: 02477747888 Hotline: 0964.34.3882

Data sheet Palo Alto Networks PA-5450 Series

Technical Specifications:

Table 1: PA-5450 Performance and Capacities
	PA-5450 Configured System*	Single PA-5400-DPC-A
Firewall throughput (HTTP/appmix)	200/200 Gbps	72/68 Gbps
Threat Prevention throughput (HTTP/appmix)	125/150 Gbps	31/37 Gbps
IPsec VPN throughput	95 Gbps**	19 Gbps
Max sessions	100M	20M
New sessions per second	4M	830,000
Virtual systems (base/max)	25/225	—

Table 2: PA-5450 Networking Features
Interface Modes
L2, L3, tap, virtual wire (transparent mode)
Routing
OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing
Policy-based forwarding
Point-to-point protocol over Ethernet (PPPoE) and DHCP supported for dynamic address assignment
Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3
Bidirectional Forwarding Detection (BFD)
SD-WAN
Path quality measurement (jitter, packet loss, latency)
Initial path selection (PBF)
Dynamic path change
IPv6
L2, L3, tap, virtual wire (transparent mode)
Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption
SLAAC
IPsec VPN
Key exchange: manual key, IKEv1 and IKEv2 (pre-shared key, certificate-based authentication)
Encryption: 3DES, AES (128-bit, 192-bit, 256-bit)
Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512
GlobalProtect large-scale VPN for simplified configuration and management

Table 2: PA-5450 Networking Features (cont.)
VLANs
802.1Q VLAN tags per device/per interface: 4,094/4,094
Aggregate interfaces (802.3ad), LACP
Network Address Translation
NAT modes (IPv4): static IP, dynamic IP, dynamic IP and port (port address translation)
NAT64, NPTv6
Additional NAT features: dynamic IP reservation, tunable dynamic IP and port oversubscription
High Availability
Modes: active/active, active/passive, HA clustering
Failure detection: path monitoring, interface monitoring
Mobile Network Infrastructure*
GTP Security
SCTP Security

Table 3: PA-5450 Hardware Specifications
PA-5400-NC-A Networking I/O
100/1000/10G Cu (4), 1G/10G SFP/ SFP+ (12), 40G/100G QSFP28 (2); minimum 1 NC and maximum 2 NCs per system; 2 NCs require 2 or more DPCs installed
PAN-PA-5400-MPC-A Management I/O
10/100/1000 (2), 40G/100G QSFP28 HA (2), 10/100/1000 out-of- band management (2), RJ45 console port (1), USB console port (1)
Storage Capacity
480 GB SSD, RAID1, system storage 4 TB SSD, log storage (optional)
Max BTU/hr
8,828
Power Supplies (Base/Max)
2/4
AC Input Voltage (Input Frequency)
100–120 VAC & 200–240 VAC (50–60 Hz)
AC Power Supply Output
2,200 watts/power supply
Max Current Consumption
AC: 100–120 VAC, ~14 A max. per input 200–240 VAC, ~12.5 A max. per input
DC: 48–60 VDC, 52 A max. per input

Table 3: PA-5450 Hardware Specifications (cont.)
Max Inrush Current
AC: 35 A @ 230 VAC, 35 A @ 120 VAC
DC: 50 A @ 72 VDC
Rack Mount (Dimensions)
5U, 19” standard rack 8.75” H x 30.25” D x 17.38” W
Maximum Time Between Failure (MTBF)
Configuration dependent; contact your Palo Alto Networks representative for MTBF details.
Safety
cTUVus, CB
EMI
FCC Class A, CE Class A, VCCI Class A, KCC Class A, BSMI Class A
Environment
Operating temperature: 32° to 122° F, 0° to 50° C
Non-operating temperature: -4° to 158° F, -20° to 70° C
