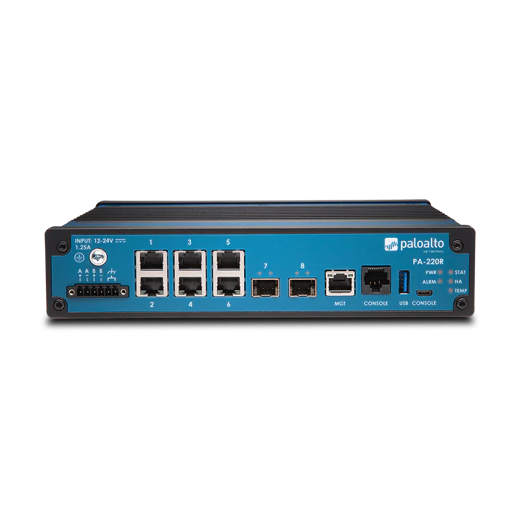

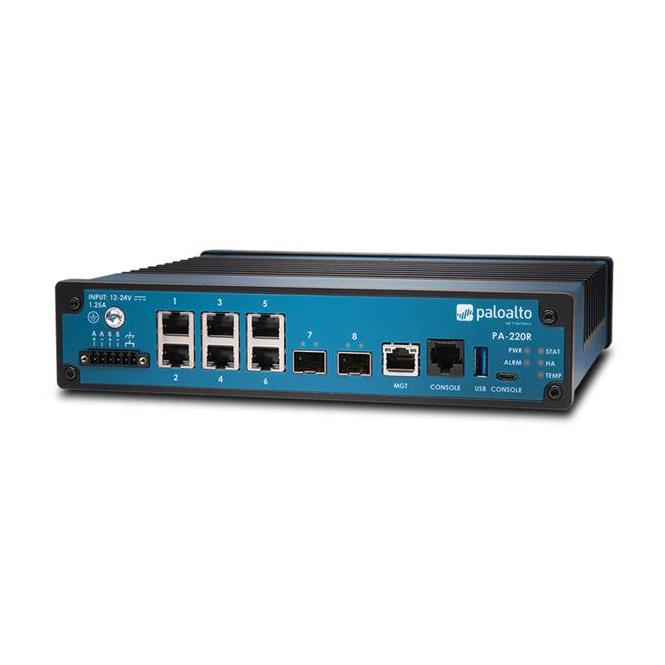

Palo Alto PA-220R (PAN-PA-220R)

Call/Inbox/Zalo ngay để nhận giá tốt & mới nhất: 0964 343 882
Palo Alto PA-220R (PAN-PA-220R)
Palo Alto PA-220R (PAN-PA-220R)

Palo Alto PA-220R (PAN-PA-220R)

  • SM00918
  • Palo Alto

10/100/1000 (6), SFP (2) ports

1 x 10/100/1000 out-of-band management port

1 x RJ-45 & 1 x Micro USB console port, 1 x USB port

Storage capacity: 32GB EMMC

Recommended for 1-10 user network

Firewall throughput: 545 Mbps

IPsec VPN throughput: 550 Mbps

Max Sessions: 64,000

New Sessions per Second: 4,200

Giá bán : Liên hệ để có giá tốt

Thêm vào giỏ hàng

Palo Alto PA-220R (PAN-PA-220R)

Thiết bị tường lửa công nghiệp Palo Alto PA-220R (PAN-PA-220R) Ruggedized

  • 10/100/1000 (6), SFP (2) ports
  • 1 x 10/100/1000 out-of-band management port, 1 x RJ-45 console port, 1 x USB port, 1 x Micro USB console port
  • Storage capacity: 32GB EMMC
  • Recommended for 1-10 user network
  • Firewall throughput: 545 Mbps
  • IPsec VPN throughput: 550 Mbps
  • Max Sessions: 64,000
  • New Sessions per Second: 4,200
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng

Thiết bị tường lửa công nghiệp Palo Alto Networks PA-220R (PAN-PA-220R)

SKUPAN-PA-220R
Performance and Capacities
Firewall throughput (HTTP/appmix)545 / 535 Mbps
Threat Prevention throughput (HTTP/appmix)265 / 320 Mbps
IPsec VPN throughput550 Mbps
Max sessions64,000
New sessions per second4,200
Hardware Specifications
I/O10/100/1000 (6), SFP (2)
Management I/O- 10/100/1000 out-of-band management port (1)
- RJ-45 console port (1)
- USB port (1)
- Micro USB console port (1)
Storage Capacity32 GB EMMC
Power Supply (Avg/Max Power Consumption)Optional: dual redundant DC power feeds (13 W / 16 W)
Max BTU/hr55
Input Voltage (Input Frequency)12 - 48 VDC 1.4A
Max Current ConsumptionFirewall: 1.4 A @ 12 VDC
Max inrush current 4.9 A @ 12 VDC
Dimensions2.0” H x 8.66” D x 9.25” W
Flexible mounting options, including DIN rail, rack, and wall mount
Weight (Standalone Device/As Shipped)4.5 lbs / 6.0 lbs
SafetycTUVus, CB
EMIFCC Class A, CE Class A, VCCI Class A
Environment- Operating temperature: -40° to 158° F, -40° to 70° C
- Non-operating temperature: -40° to 167° F, -40° to 75° C
- Passive cooling
Networking Features
Interface ModesL2, L3, tap, virtual wire (transparent mode)
RoutingOSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing
Policy-based forwarding
Point-to-Point Protocol over Ethernet (PPPoE)
Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3
SD-WANPath quality measurement (jitter, packet loss, latency)
Initial path selection (PBF)
Dynamic path change
IPv6L2, L3, tap, virtual wire (transparent mode)
Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption
SLAAC
IPsec VPNKey exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication)
Encryption: 3DES, AES (128-bit, 192-bit, 256-bit)
Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512
VLANs802.1Q VLAN tags per device/per interface: 4,094/4,094
Network Address TranslationNAT modes (IPv4): static IP, dynamic IP, dynamic IP and port (port address translation)
NAT64, NPTv6
Additional NAT features: dynamic IP reservation, tunable dynamic IP and port oversubscription
High AvailabilityModes: active/active, active/passive
Failure detection: path monitoring, interface monitoring
Industrial Protocols and ApplicationsApp-IDs for ICS and SCADA sheet
Zero Touch Provisioning (ZTP)Available with -ZTP SKUs (PA-220R-ZTP)
Requires Panorama 9.1.3 or higher



LIÊN HỆ NGAY NHÀ PHÂN PHỐI MIỀN BẮC CÔNG TY TNHH CÔNG NGHỆ SMART24H

ĐỂ ĐƯỢC TƯ VẤN VÀ BÁO GIÁ MIỄN PHÍ:

Email: sale.smart24h@gmail.com

TeL: 02477747888               Hotline: 0964.34.3882

Data sheet Palo Alto Networks PA-220R

PA-220R Series Hardware
Palo Alto Networks PA-220R#PAN-PA-220R
Subscription
DNS Security subscription year 1, PA-220R#PAN-PA-220R-DNS
GlobalProtect subscription year 1, PA-220R#PAN-PA-220R-GP
Threat prevention subscription year 1, PA-220R#PAN-PA-220R-TP
PANDB URL filtering subscription year 1, PA-220R#PAN-PA-220R-URL4
Premium support year 1, PA-220R#PAN-SVC-PREM-220R

Extends native protection across all attack vectors with cloud-delivered security subscriptions

  • Threat Prevention—inspects all traffic to automatically block known vulnerabilities, malware, vulnerability ex-ploits, spyware, command and control (C2), and custom intrusion prevention system (IPS) signatures.
  • WildFire® malware prevention—unifies inline machine learning protection with robust cloud-based analysis to instantly prevent new threats in real time as well as dis-cover and remediate evasive threats faster than ever
  • URL Filtering—prevents access to malicious sites and protects users against web-based threats, including cre-dential phishing attacks.
  • DNS Security—detects and blocks known and unknown threats over DNS (including data exfiltration via DNS tun-neling), prevents attackers from bypassing security mea-sures, and eliminates the need for independent tools or changes to DNS routing.
  • IoT Security—discovers all unmanaged devices in your network quickly and accurately with ML, without the need to deploy additional sensors. Identifies risks and vul-nerabilities, prevents known and unknown threats, pro-vides risk-based policy recommendations, and automates enforcement.
