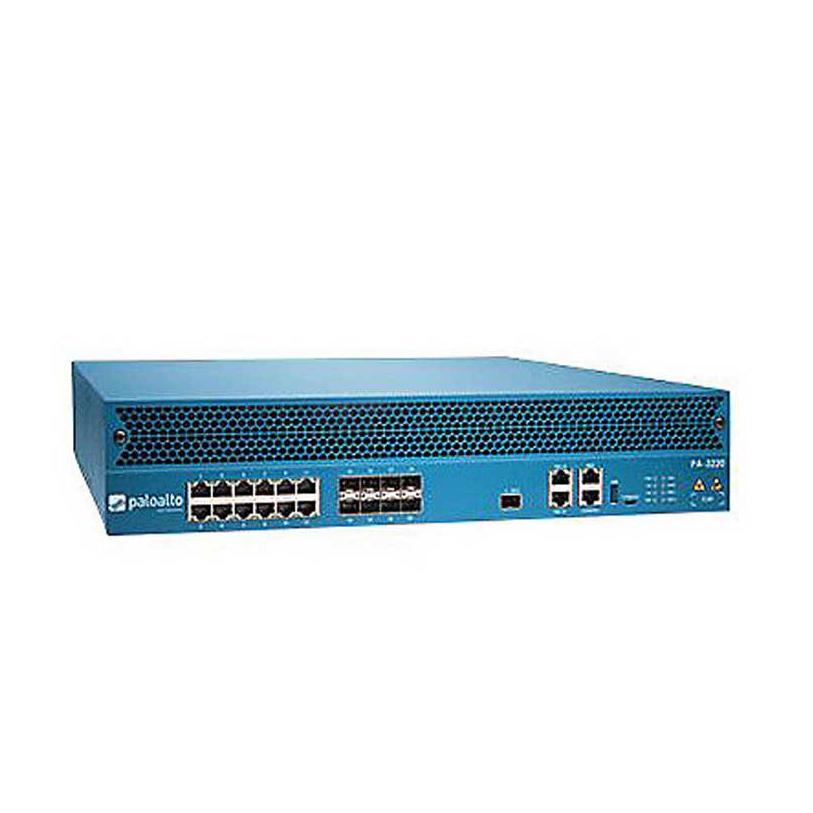

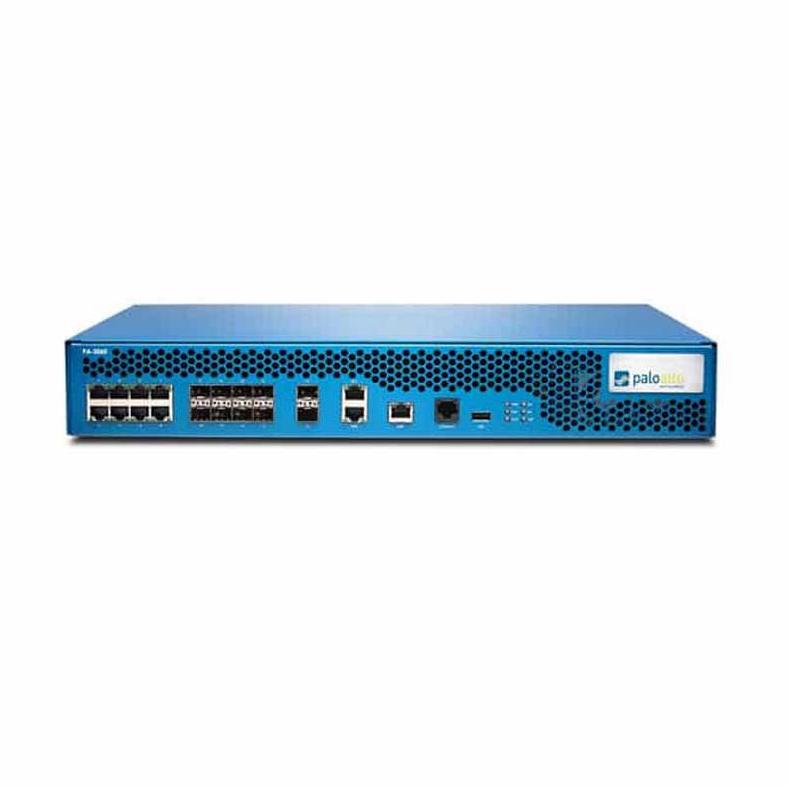

Palo Alto PA-3220 (PAN-PA-3220)
Thiết bị tường lửa Palo Alto Networks PA-3220 (PAN-PA-3220)
- 10/100/1000 (12), 1G SFP (4), 1G/10G SFP/SFP+ (4)
- 10/100/1000 out-of-band management port (1), 10/100/1000 HA (2), 10G SFP+ HA (1)
- RJ-45 console port (1), Micro USB (1)
- Redundant 650-watt AC or DC (195/240)
- Firewall throughput: 4.4 Gbps
- IPsec VPN throughput: 2.5 Gbps
- Max sessions: 1M (48000 per sec.)
- Virtual systems (base/max): 1/6
- Giá bán : Liên hệ để có giá tốt
- Tình trạng : Còn hàng
Thiết bị tường lửa Palo Alto Networks PA-3220
| SKU | PAN-PA-3220 |
|---|---|
| Performance and Capacities | |
| Firewall throughput (HTTP/appmix) | 3.9/4.4 Gbps |
| Threat Prevention throughput (HTTP/appmix) | 1.9/2.3 Gbps |
| IPsec VPN throughput | 2.5 Gbps |
| Max sessions | 1M |
| New sessions per second | 48,000 |
| Virtual systems (base/max) | 1/6 |
| Hardware Specifications | |
| I/O | 10/100/1000 (12), 1G SFP (4), 1G/10G SFP/SFP+ (4) |
| Management I/O | 10/100/1000 out-of-band management port (1) 10/100/1000 high availability (2) 10G SFP+ high availability (1) RJ-45 console port (1) Micro USB (1) |
| Storage Capacity | 240 GB SSD |
| Power Supply (Avg/Max Power Consumption) | Redundant 650-watt AC or DC (195 / 240) |
| Max BTU/hr | 819 |
| Input Voltage (Input Frequency) | AC: 100–240 VAC (50/60Hz) DC: -48 V @ 4.7 A, -60 V @ 3.8 A |
| Max Current Consumption | AC: 2.3 A @ 100 VAC, 1.0 A @ 240 VAC DC: -48 V @ 4.7 A, -60 V @ 3.8 A |
| Mean Time Between Failure (MTBF) | 14 years |
| Rack Mount Dimensions | 2U, 19” standard rack (3.5” H x 20.53” D x 17.34" W) |
| Weight (Standalone Device/As Shipped) | 29 lbs / 41.5 lbs |
| Safety | cTUVus, CB |
| EMI | FCC Class A, CE Class A, VCCI Class A |
| Environment | Operating temperature: 32° to 122° F, 0° to 50° C Non-operating temperature: -4° to 158° F, -20° to 70° C Humidity tolerance: 10% to 90% Maximum altitude: 10,000 ft / 3,048 m Airflow: front to back |
| Networking Features | |
|---|---|
| Interface Modes | L2, L3, tap, virtual wire (transparent mode) |
| Routing | OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing Policy-based forwarding Point-to-Point Protocol over Ethernet (PPPoE) Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3 |
| SD-WAN | Path quality measurement (jitter, packet loss, latency) Initial path selection (PBF) Dynamic path change |
| IPv6 | L2, L3, tap, virtual wire (transparent mode) Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption SLAAC |
| IPsec VPN | Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication) Encryption: 3DES, AES (128-bit, 192-bit, 256-bit) Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512 |
| VLANs | 802.1Q VLAN tags per device/per interface: 4,094/4,094 Aggregate interfaces (802.3ad), LACP |
| Network Address Translation | NAT modes (IPv4): static IP, dynamic IP, dynamic IP and port (port address translation) NAT64, NPTv6 Additional NAT features: dynamic IP reservation, tunable dynamic IP and port oversubscription |
| High Availability | Modes: active/active, active/passive, HA clustering Failure detection: path monitoring, interface monitoring |
| Zero Touch Provisioning (ZTP) | Available with -ZTP SKUs (PA-3220-ZTP) Requires Panorama 9.1.3 or higher |
