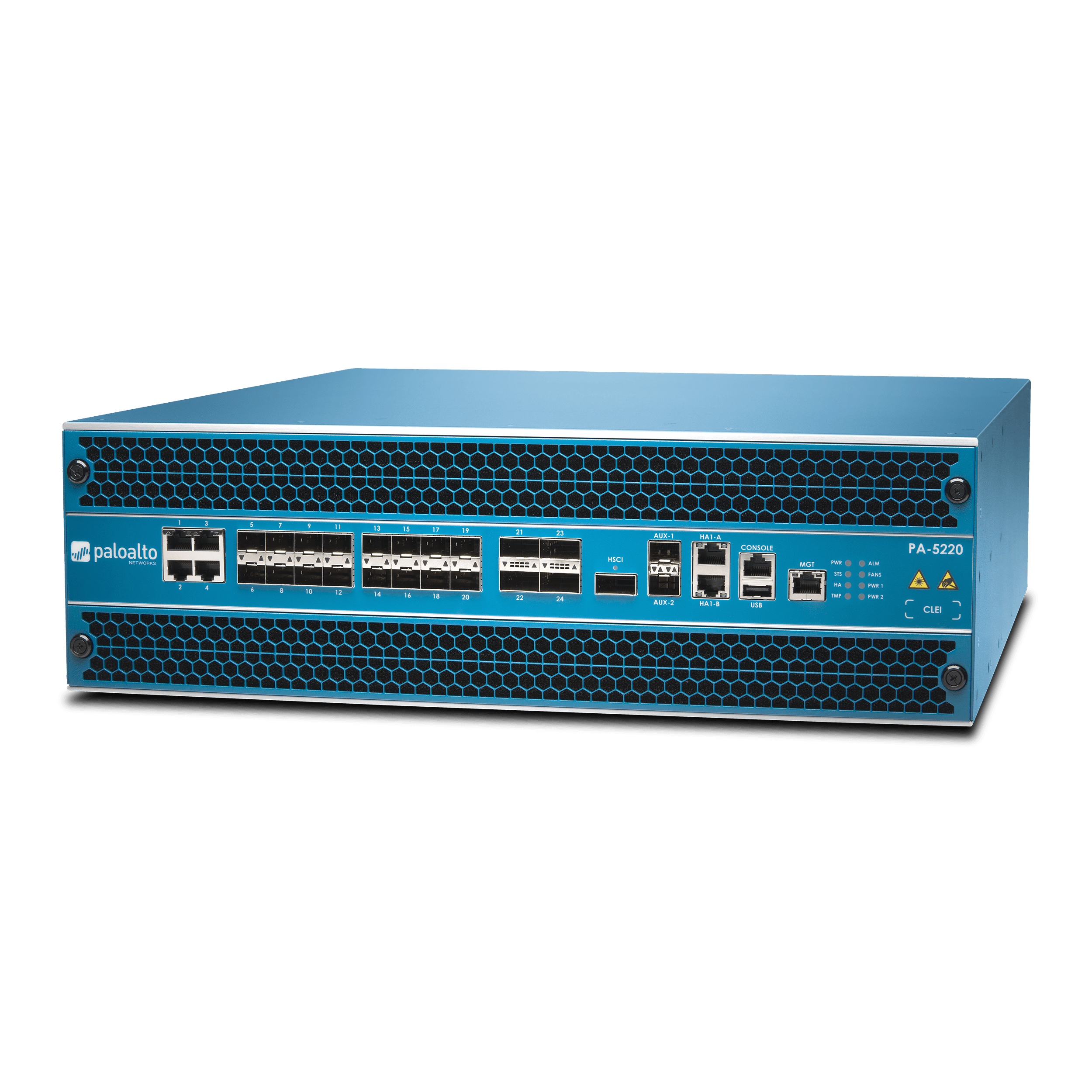

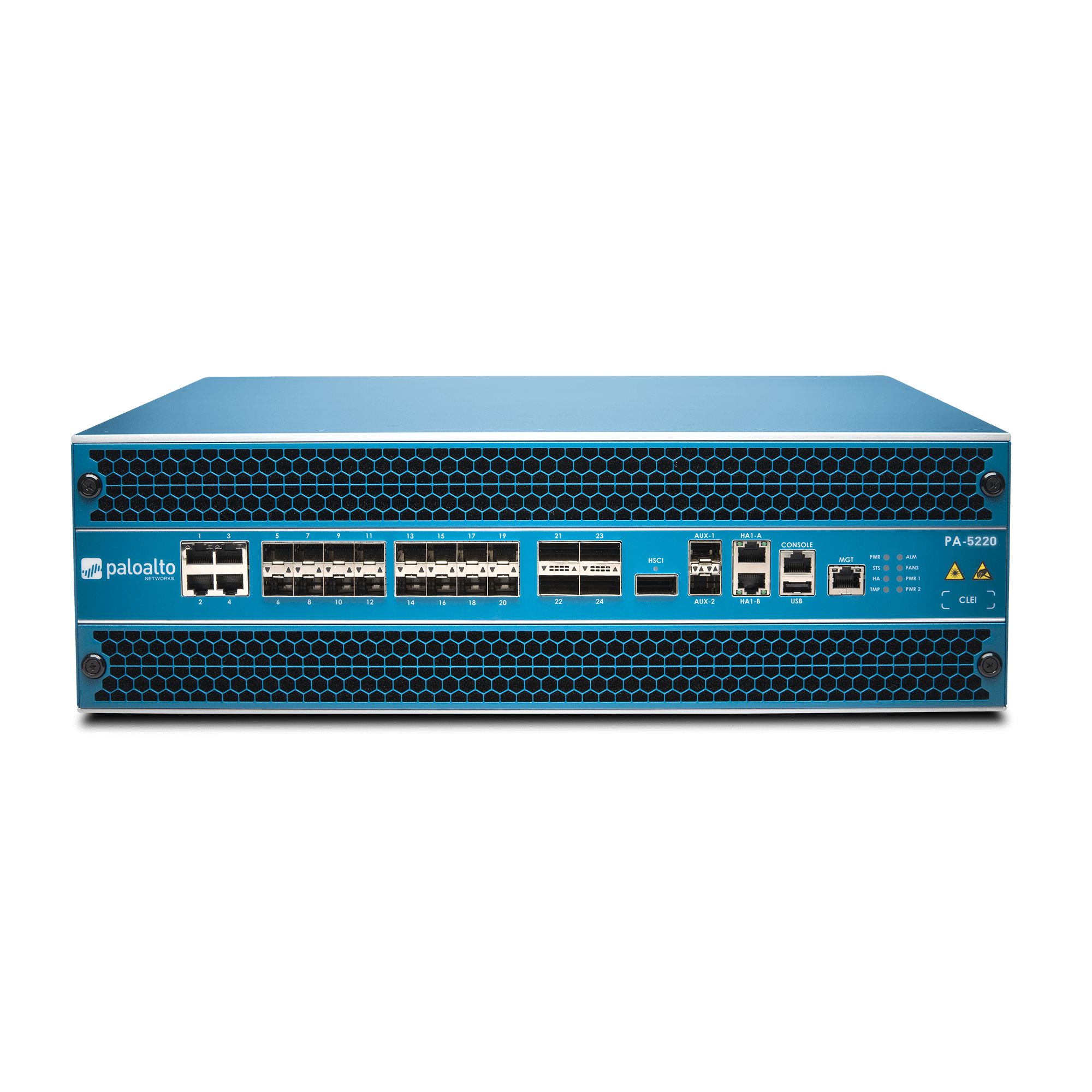

Palo Alto PA-5220 (PAN-PA-5220-AC)

  • SM00924
  • Palo Alto

100/1000/10G RJ45 (4), 1G/10G SFP/SFP+ (16), 40G QSFP+ (4)

10/100/1000 (2), 40G QSFP+ HA (1)

10/100/1000 out-of-band management (1)

Storage Capacity: 240 GB SSD, 2 TB HDD

Firewall throughput: 13.9/15.6 Gbps

IPsec VPN throughput: 9.5 Gbps

Max sessions: 4M (155,000 per sec.)

Virtual systems (base/max): 10/20.

Giá bán : Liên hệ để có giá tốt

Palo Alto PA-5220 (PAN-PA-5220-AC)

Thiết bị tường lửa Palo Alto Networks PA-5250 (PAN-PA-5220-AC)

  • 100/1000/10G RJ45 (4), 1G/10G SFP/SFP+ (16), 40G QSFP+ (4)
  • 10/100/1000 (2), 40G QSFP+ HA (1), 10/100/1000 out-of-band management (1), RJ45 console port (1)
  • Storage Capacity: 240 GB SSD, 2 TB HDD
  • Firewall throughput: 13.9/15.6 Gbps
  • IPsec VPN throughput: 9.5 Gbps
  • Max sessions: 4M (155,000 per sec.)
  • Virtual systems (base/max): 10/20.
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng

Thiết bị tường lửa Palo Alto Networks PA-5220

SKUPAN-PA-5220-AC
Performance and Capacities
Firewall throughput (HTTP/appmix)13.9/15.6 Gbps
Threat Prevention throughput (HTTP/appmix)7.1/8.8 Gbps
IPsec VPN throughput9.5 Gbps
Max sessions4M
New sessions per second155,000
Virtual systems (base/max)10/20
Hardware Specifications
I/O100/1000/10G Cu (4), 1G/10G SFP/SFP+ (16), 40G QSFP+ (4)
Management I/O10/100/1000 (2)
40G QSFP+ HA (1)
10/100/1000 outof-band management (1)
RJ45 console port (1)
Storage Capacity240 GB SSD, RAID1, system storage
2 TB HDD, RAID1, log storage
Power Supply (Avg/Max Power Consumption)571 / 685 W
Max BTU/hr2,340
Power Supplies (Base/Max)1:1 fully redundant (2/2)
AC Input Voltage (Input Frequency)100–240 VAC (50–60 Hz)
AC Power Supply Output1,200 watts/power supply
Max Current ConsumptionAC: 8.5 A @ 100 VAC, 3.6 A @ 240 VAC
Max Inrush CurrentAC: 50 A @ 230 VAC, 50 A @ 120 VAC
Mean Time Between Failure (MTBF)9.12 years
Rack Mount (Dimensions)3U, 19” standard rack
5.25” H x 20.5” D x 17.25” W
Weight (Standalone Device/As Shipped)46 lbs / 62 lbs
SafetycTUVus, CB
EMIFCC Class A, CE Class A, VCCI Class A
EnvironmentOperating temperature: 32° to 122° F, 0° to 50° C
Non-operating temperature: -4° to 158° F, -20° to 70° C

Networking Features
Interface ModesL2, L3, tap, virtual wire (transparent mode)
RoutingOSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing
Policy-based forwarding
Point-to-point protocol over Ethernet (PPPoE) and DHCP supported for dynamic address assignment
Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3
Bidirectional Forwarding Detection (BFD)
SD-WANPath quality measurement (jitter, packet loss, latency)
Initial path selection (PBF)
Dynamic path change
IPv6L2, L3, tap, virtual wire (transparent mode)
Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption
SLAAC
IPsec VPNKey exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication)
Encryption: 3DES, AES (128-bit, 192-bit, 256-bit)
Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512
GlobalProtect large-scale VPN for simplified configuration and management
VLANs802.1Q VLAN tags per device/per interface: 4,094/4,094
Aggregate interfaces (802.3ad), LACP
Network Address TranslationNAT modes (IPv4): static IP, dynamic IP, dynamic IP and port (port address translation)
NAT64, NPTv6
Additional NAT features: dynamic IP reservation, tunable dynamic IP and port oversubscription
High AvailabilityModes: active/active, active/passive, HA clustering
Failure detection: path monitoring, interface monitoring
Mobile Network InfrastructureGTP Security
SCTP Security

LIÊN HỆ NGAY NHÀ PHÂN PHỐI MIỀN BẮC CÔNG TY TNHH CÔNG NGHỆ SMART24H

ĐỂ ĐƯỢC TƯ VẤN VÀ BÁO GIÁ MIỄN PHÍ:

Email: sale.smart24h@gmail.com

TeL: 02477747888               Hotline: 0964.34.3882



Data sheet Palo Alto Networks PA-5200 Series


PA-5200 Series Hardware
Palo Alto Networks PA-5220 with redundant AC power suppliesPAN-PA-5220-AC
Virtual systems upgrade - Additional 10 virtual systems for PA-5220 (10 to 20) for PA-5220PAN-PA-5220-VSYS-50
Subscription
DNS Security subscription year 1, PA-5220#PAN-PA-5220-DNS
GlobalProtect subscription year 1, PA-5220#PAN-PA-5220-GP
Threat prevention subscription year 1, PA-5220#PAN-PA-5220-TP
PANDB URL filtering subscription year 1, PA-5220#PAN-PA-5220-URL4
Premium support year 1, PA-5220#PAN-SVC-PREM-5220

Extends native protection across all attack vectors with cloud-delivered security subscriptions

  • Threat Prevention—inspects all traffic to automatically block known vulnerabilities, malware, vulnerability ex-ploits, spyware, command and control (C2), and custom intrusion prevention system (IPS) signatures.
  • WildFire® malware prevention—unifies inline machine learning protection with robust cloud-based analysis to instantly prevent new threats in real time as well as dis-cover and remediate evasive threats faster than ever
  • URL Filtering—prevents access to malicious sites and protects users against web-based threats, including cre-dential phishing attacks.
  • DNS Security—detects and blocks known and unknown threats over DNS (including data exfiltration via DNS tun-neling), prevents attackers from bypassing security mea-sures, and eliminates the need for independent tools or changes to DNS routing.
  • IoT Security—discovers all unmanaged devices in your network quickly and accurately with ML, without the need to deploy additional sensors. Identifies risks and vul-nerabilities, prevents known and unknown threats, pro-vides risk-based policy recommendations, and automates enforcement.
  • Enterprise DLP—offers the industry’s first cloud-delivered enterprise DLP that consistently protects sensitive data across networks, clouds, and users.
  • SaaS Security—delivers integrated SaaS security that lets you see and secure new SaaS applications, protect data, and prevent zero-day threats at the lowest total cost of ownership (TCO)
