Palo Alto PA-7050 (PAN-PA-7050-AC-SYS)

Mã sản phẩm: SM00928
Thương hiệu: Palo Alto

Firewall throughput: 416 Gbps

Threat Prevention throughput: 396 Gbps

IPsec VPN throughput: 200 Gbps

72 x 10/100/1000, 48 x SFP, 24 x SFP+

10/100/1000 (2), QSFP+ high availability (2)

10/100/1000 out-of-band management (1)

SFP MGT (2), SFP HA1 (2)

HSCI HA2/HA3 QSFP+/QSFP28 (2)

Giá bán : Liên hệ để có giá tốt

Thêm vào giỏ hàng

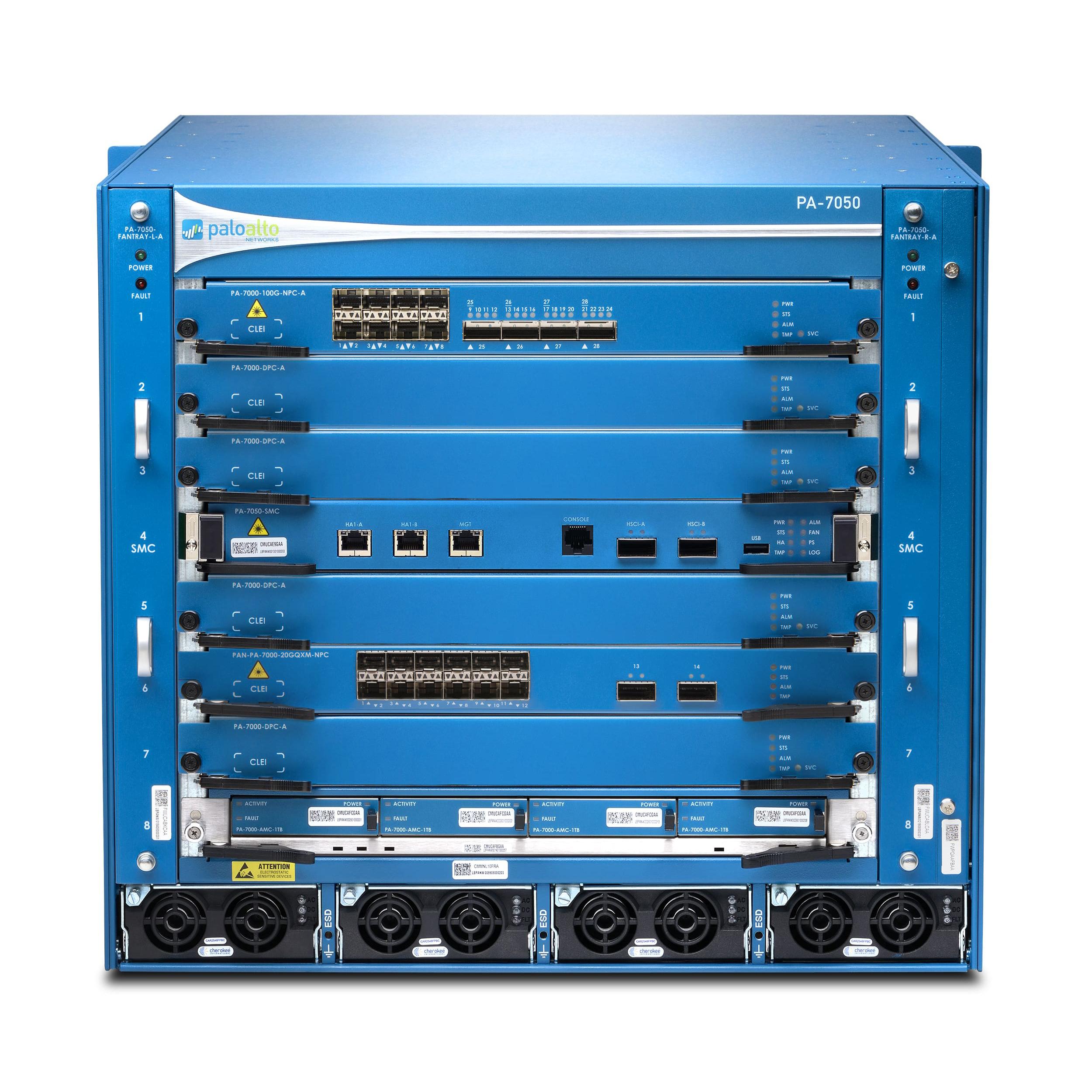

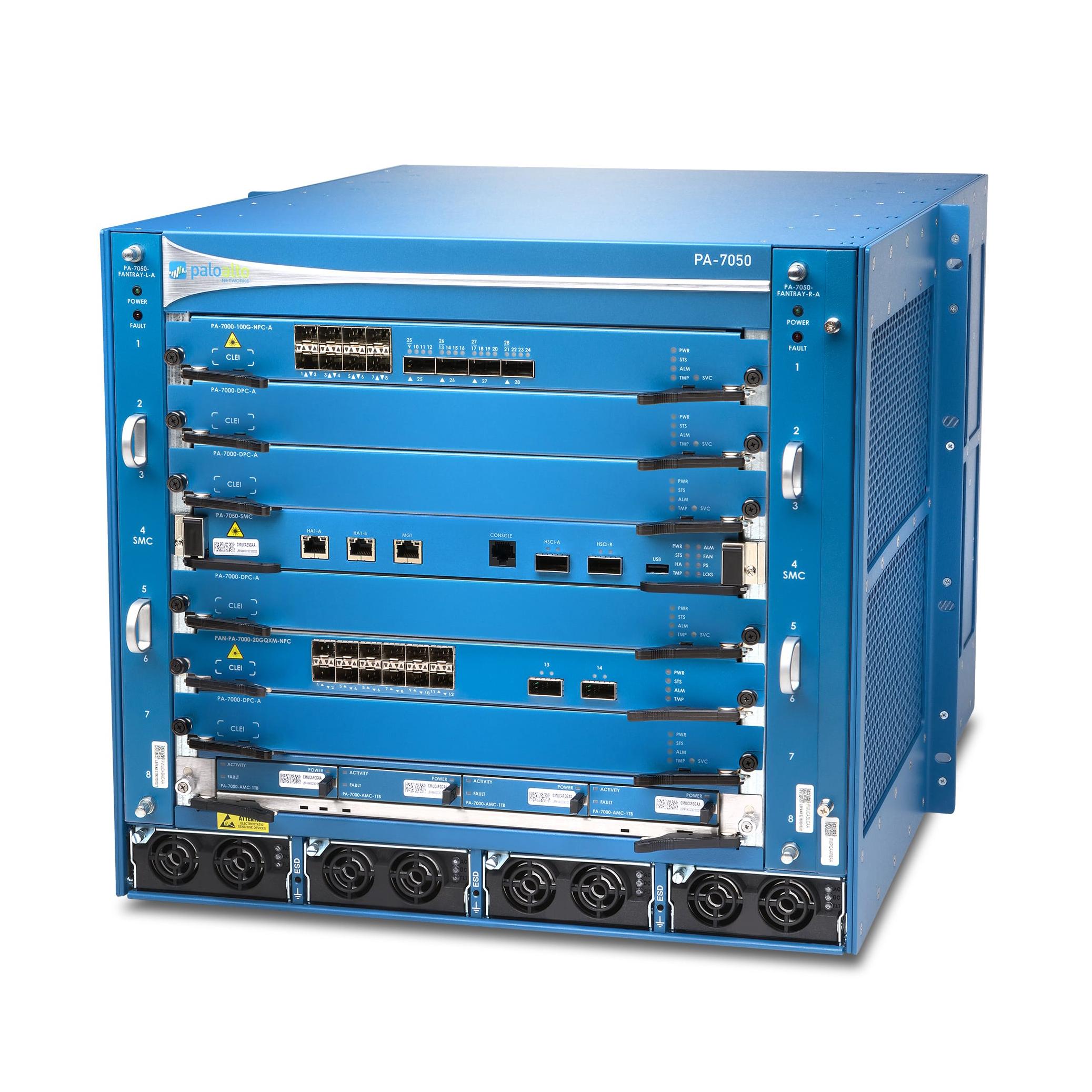

Palo Alto PA-7050

Thiết bị tường lửa Firewall Palo Alto PA-7050

Firewall throughput: 416 Gbps
Threat Prevention throughput: 396 Gbps
IPsec VPN throughput: 200 Gbps
72 x 10/100/1000, 48 x SFP, 24 x SFP+
10/100/1000 (2), QSFP+ high availability (2), 10/100/1000 out-of-band management (1), RJ45 console port (1)
SFP MGT (2), SFP HA1 (2), HSCI HA2/HA3 QSFP+/QSFP28 (2), RJ45 serial console (1), Micro USB serial console (1)
Giá bán : Liên hệ để có giá tốt
Tình trạng : Còn hàng

Thiết bị tường lửa Firewall Palo Alto PA-7050

Performance and Capacities
Model & Line Cards	PA-7050	PA-7000 DPC-A	PA-7000-100G-NPC-A
Firewall throughput (HTTP/appmix)	336.8 / 384.8 Gbps	67.2/76.8 Gbps	50.6/57.8 Gbps
Threat Prevention throughput (HTTP/appmix)	188.8 / 226.2 Gbps	34.3/43 Gbps	25.8/32.4 Gbps
IPsec VPN throughput	192.2 Gbps	34.9Gbps	26.3 Gbps
Max sessions	245M	43M	32M
New sessions per second	4M	775,000	585,000
Virtual systems (base/max)	25/225	–
Hardware Specifications
	PA-7000 NPC	PA-7050 Full System
PA-7000-100G-NPC-A	SFP/SFP+ (8), QSFP+/QSFP28 (4)	SFP/SFP+ (48), QSFP+/QSFP28 (24)
PA-7050-SMC-B	–	SFP MGT (2), SFP HA1 (2), HSCI HA2/HA3 QSFP+/QSFP28 (2), RJ45 serial console (1), Micro USB serial console (1)
PA-7000-LFC-A	–	480 GB SSD, system drive RAID1 (2 x 240 GB)
AC input voltage	–	100–240 VAC (50–60 Hz)
Rated input current	–	27-12A
AC power supply output	–	2500 W @ 240 VAC 1200 W @ 120 VAC
DC input voltage	–	-40 to -60 VDC
Rated input current	–	60A
DC power output	–	2500 W / power supply
Max current / power supply	–	16 A @ 180 VAC In 75 A @ 37.5 VDC In
Power supplies (base/max)	–	4/4
Max inrush current / power supply	–	50 AAC / 75 ADC peak
Mean time between failure (MTBF)	Configuration dependent; contact your Palo Alto Networks representative for MTBF details
Max BTU/hr	–	10,236
Rack mount (dimensions)	–	9U, 19” standard rack (15.75” H x 19” W x 24” D)
Weight (standalone device/ as shipped)	–	187.4 lbs. AC / 185 lbs. DC
Safety	cTUVus, CB
EMI	FCC Class A, CE Class A, VCCI Class A
Certifications	NEBS Level 3
Environment
Operating temperature	–	32° to 122° F, 0° to 50° C
Non-operating temperature	–	-4° to 158° F, -20° to 70° C

LIÊN HỆ NGAY NHÀ PHÂN PHỐI MIỀN BẮC CÔNG TY TNHH CÔNG NGHỆ SMART24H

ĐỂ ĐƯỢC TƯ VẤN VÀ BÁO GIÁ MIỄN PHÍ:

Email: sale.smart24h@gmail.com

TeL: 02477747888 Hotline: 0964.34.3882

Data sheet Palo Alto Networks PA-7000 Series

Firewall PA‑7050
Firewall-Durchsatz (HTTP/Appmix)	390/416 Gbit/s
Threat Prevention-Durchsatz (DSRI aktiviert)	396 Gbit/s
Threat Prevention-Durchsatz (HTTP/Appmix)	210/258 Gbit/s
IPsec-VPN-Durchsatz	200 Gbit/s
Max. Anzahl an Sitzungen	245 Mio.
Neue Sitzungen pro Sekunde	4 Mio.
Virtuelle Systeme (Basis/max.)	25/225

Hardwarespezifikationen der PA‑7050
I/O	SFP MGT, (2) SFP HA1, (2) HSCI HA2/HA3 QSFP+/QSFP28SFP MGT (2), SFP HA1 (2), HSCI HA2/HA3 QSFP+/QSFP28 (2), RJ45 seriell Konsole (1), serielle Konsole Micro-USB
Speicherkapazität	240-GB-SSD-Systemlaufwerk, RAID1 (2)
Eingangsspannung AC	100–240 V AC (50–60 Hz)
Nenneingangsstrom	27–12 A
Stromversorgung AC-Ausgang	2500 W bei 240 V AC 1200 W bei 120 V AC
Max. Strom / Stromversorgung	16 A bei 180 V AC Eingang 75 A bei 37,5 V DCEingang
Stromversorgungen (Basis/max.)	4/4
Max. Einschaltstrom / Stromversorgung	50 A AC / 75 A DC Spitzenstrom
Mean Time Between Failures (mittlere Betriebsdauer zwischen Ausfällen, MTBF)	Abhängig von der Konfiguration. Wenden Sie sich für weitere Informationen zur MTBF an Ihren Ansprechpartner bei Palo Alto Networks Networks.
Max. BTU/h	10.236
Im Rack montierbar (Abmessungen)	9 Einheiten, 48,26-cm-Standardrack (40 cm H x 48,26 cm B x 60,96 cm T)
Gewicht (nur Gerät/wie geliefert)	85 kg
Sicherheit	cTUVus, CB
EMI	FCC-Klasse A, CE-Klasse A, VCCI-Klasse A
Zertifizierungen	NEBS Level 3
Umgebung	Betriebstemperatur: 0 ° bis 50 °C Temperatur bei Nichtbetrieb: -20 ° bis 70 °C
